Analyze Data Records #

Perform a deep inspection of data sets and use the muiti-faceted results to evaluate the quality, conformance and presence of errors.

Goal #

The goal of analysis is to characterize data to know its structure, range of values, and presence of anomalies in relation to what it should be as defined by its architecture. Ideally, the documentation would describe the details of how it was collected, stored, and the meaning of the data in the context of its intended use. In this ideal case, unit tests could be made to automatically measure quality metrics both as the data is received and processed, and as it is distributed and used. Unfortunately, this ideal situation rarely exists and we are forced to manage data with uncertain quality, pedigree, and trustworthiness. When the use can tolerate imperfect data then this is not much of a problem. However, we now have increasingly stringent needs for better data to feed Artificial Intelligence (AI), Data Science (DataSci), and more sophisticated forecasting models in financial markets, global supply chain, consumer activity, and many others.

Objectives #

We have learned from in-depth analysis and thorough reconstruction of data sets across many fields and types of data systems that there are several specific types of anomalies that frequenetly exist and go undetected by even the most modern tools. Part of this expert assessment included following and measuring the impact of the imperfect data on the end-use business activities for how outcome errors impacted decision making, audit, compliance, analytics, forecast accuracy, etc. From this we created a combined human expert and big data Machine Learning (ML) technology to filter through all data to find several types of problems and reliable approaches to correcting them automatically. This led to the following key objectives of the VerityX (X denotes both the Python and DotNet libraries) analysis process:

capture details of field datatype and format for all records and visibly showcase even infrequent variations.

many tools limit the depth and breadth of records analyzed and variations captured due to processing, memory, and storage limitations.

capture complete range of values for each field and emphasize low frequency instances since this is how anomalies can be quickly discovered.

capture complete range of values for combinations of several fields

track number of field values parsed per record as key indicator of presence of extra delimiters and line feeds that are not apparent during human review but which cause parsing code to break what should be a single record into multiple partial records or generate more field values than there are fields. This is surprisingly common in many mid and large size data systems.

provide automated correction algorithms that repair all of the above problems with minimal required data architecture and engineering which tends to be so complicated and labor intensive that it often lags actual data causing serious ‘technical debt’.

provide multiple views and types of results into data quality and problems since real world data teams are typically too constrained in time and personnel to probe every data set, system, and operation in detail.

Practice Continual Improvement #

VerityX is designed for iteratively improving data set quality and enriching. It is counter-productive to attempt to define every detail of a data set’s structure, meaning, and use case rules in one lengthy requirements gathering process. It is too complicated, laborious and prone to error. Instead, characterize data with an initial deep assessment and use the results to discover what is correct, what is a problem, and what needs to be clarified. Adjusting the VerityX job with ever increasing specificity is purposefully easy to do, and a core design principle to allow all team members including non-technical business workers and managers to review the business rules and resulting outcomes.

A typical workflow will be:

Organize source data file(s) and use a text editor to view the top of the file to determine its basic structure for:
- is there a header line of field titles
- what delimiter is used
- are there comment lines starting with either # or //
- are there empty lines
- are there any obvious problems like lines that are much too short or long, odd characters that do not belong in the type of data, values that are inconsistent compared to most records
Create a small application (Python or C# DotNet depending on library used) to read in the file’s records, provide settings, define fields. See examples on support web site and the sample below.
Iterate: Analyze, Review, Adjust
1. submit data to analysis function
2. review results: datatype and format distributions per field, unique values per field, record size distribution, special characters
3. adjust Field definitions to include datatypes and formats based on results to improve granularity of analysis results
Iterate: Remediate, Normalize, Enrich
1. define transforms, add enrichment fields, normalize value ranges
2. submit data to remediation function
3. review result statistics and corrected, normalized, enriched output data: view with text editor, load into Excel, use Jupyter Notebook template
Use new data in end use case and assess results
- analytics: pick a few samples and thoroughly review to see if values and category and numeric aggregations make sense and agree with known outcomes
- Data Science: check statistical scalars and distributions to predictions and historical data
- AI/ML: include in models and review changes, sensitivities, calibration to prior known test cases, reasonableness of future predictions

Example #

We use C# in Visual Studio 2022 (VS2022) on Windows 11.

Open VS2022

create a new console solution for Target framework .Net 6.0

in Program.cs, set namespace, public class Program, and a Main method

test by running with F5 key. You should see a console open with the line “STARTING VERITYDOTNET_EXAMPLES”

namespace VerityDotNet_Examples {
  public class Program {
    static void Main() {
      try {
        Console.WriteLine("STARTING VERITYDOTNET_EXAMPLES");
      }
      catch (Exception ex) { Console.WriteLine(ex.ToString()); }
    }
  }
}

Add new class Analyze.cs and change to be internal static

namespace VerityDotNet_Examples {
  internal static class Analyze {

  }
}

Use Tools / Nuget Package Manager / Manage NuGet Packages for Solution and enter ‘VerityDotNet’ into BROWSE
Select VerityDotNet by Technik Interlytics and then your project in the list in right side pane and click INSTALL
Read and accept the License. Carefully review the license requirements especially on it not being open source and therefore not usable in an open source project.
Go to Analyze.cs and add ‘using VerityDotNet’

using VerityDotNet;

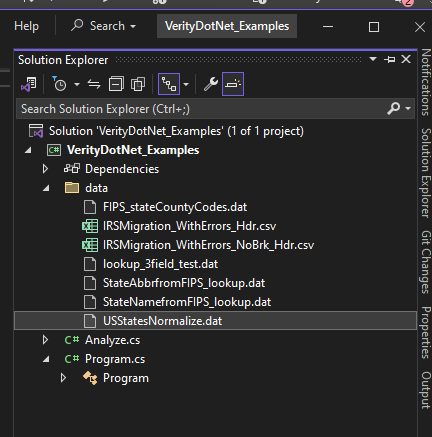

create a folder ‘data’ under your project in Solution Explorer
obtain sample data files from Technik Interlytics support and add to this ‘data’ folder
- FIPS_stateCountyCodes.dat
- IRSMigration_WithErrors_Hdr.csv
- IRSMigration_WithErrors_NoBrk_Hdr.csv
- lookup_3field_test.dat
- StateAbbrfromFIPS_lookup.dat
- StateNamefromFIPS_lookup.dat
- USStatesNormalize.dat

Read Data File#

// Set variables for file handling
curDir = AppContext.BaseDirectory;
dirDelim = curDir.Contains('\\') ? "\\" : "/";
if (!curDir.EndsWith(dirDelim)) curDir += dirDelim;
txt = dirDelim + "bin" + dirDelim; //remove bin part of path if there
if (curDir.Contains(txt)) {
  curDir = curDir[..(curDir.IndexOf(txt) + 1)];
}
curDir += "data" + dirDelim;
fileName = "IRSMigration_WithErrors_Hdr.csv";
fileUri = curDir + fileName;
if (!File.Exists(fileUri)) throw new Exception($"file not found: {fileUri}");
delimChar = ",";
//read data file and make list of Field objects and source records
using (StreamReader sr = new StreamReader(fileUri)) {
  while (!sr.EndOfStream) {
    lineIn = sr.ReadLine();
    if (lineIn == null) break;
    if (lineIn.Length > 0 && !lineIn.StartsWith("//") && !lineIn.StartsWith("#")) {
      nLine++;
      if (nLine == 1) {
        if (!lineIn.Contains(delimChar)) throw new Exception($"first line does not have field delimiter: {delimChar}");
        if (lineIn.Contains(DQ)) lineIn = lineIn.Replace(DQ, "");
        temp = lineIn.Split(delimChar).ToList<string>();
        for (int i = 0; i < temp.Count; i++) {
          txt = temp[i].Trim();
          srcFields.Add(new Field() {
            title = txt,
          });
          qualityAnalysis.hashFields[txt.ToLowerInvariant()] = srcFields.Count - 1;
        }
      }
      else {
        recs.Add(lineIn);
      }
    }
  }
}

Add Field Characteristics#

We add some details to the fields to enable greater granularity in analysis results.

//assign datatypes and formats
for (int i=0; i< srcFields.Count; i++) {
  fldName= srcFields[i].title.ToLowerInvariant();
  if (fldName=="y1_statefips" || fldName == "y2_statefips") {
    srcFields[i].datatype= "string";
    srcFields[i].fmt_strlen = 2;
  }
  else if (fldName=="y1_state") {
    srcFields[i].datatype = "string";
    srcFields[i].fmt_strlen = 2;
    srcFields[i].fmt_strcase = "upper";
  }
  else if (fldName == "y1_state_name") {
    srcFields[i].datatype = "string";
  }
  else if (fldName=="n1" || fldName == "n2" || fldName == "agi") {
    srcFields[i].datatype = "int";
  }
}

Specify CoValues to Analyze#

//add coValue. Each list entry is a dictionary for a new coValue
//which has keys for 2 or 3 fields to use. AnalyzeQuality.Inspect
//method will check title and then assign list indices
coValues.Add(new Dictionary<string, string>() {
  {"field1", "y1_state" },
  {"field2", "y1_state_name" },
  {"field3", "" },
});

Set Parameters and Do Analysis#

//set parameters.
parameters["isCaseSens"] = "false";
parameters["isQuoted"] = "true"; //allows possibility of some quoted field values
parameters["delim"] = "comma"; // !!! critical to set correct delimiter !!!!
parameters["maxuv"] = "100"; //override default limit
parameters["hasHeader"] = "false"; //we removed header line as we read file but could have left it in if desired
parameters["extractFields"] = "false"; //we have Fields from original file so do not want to auto-extract
parameters["useThreads"] = "false"; //multi-threading is not used in this example
//perform Verity Analysis.
qualityAnalysis = AnalyzeQuality.Inspect(srcFields, coValues, settings, recs);
if (qualityAnalysis.status.StartsWith("notok:")) throw new Exception($"error doing AnalyzeQuality: {qualityAnalysis.status[6..]}"); //always check for error condition

Test Results#

There are many characteristics in the result object ‘qualityAnalysis’ but we only show a few examples here. More examples including test routines are available in the Technik Interlytics support web site. This sections shows validating the results to known outcomes.

n1 = 0;
foreach (long l1 in qualityAnalysis.fieldsErrDatatypeCount) {
  if (l1 > 0) n1++;
}
if (n1 != 3) errs.Add($"incorrect fieldsErrDatatypeCount {n1}/3");
n1 = 0;
foreach (long l1 in qualityAnalysis.fieldsErrFmtCount) {
  if (l1 > 0) n1++;
}
if (n1 != 3) errs.Add($"incorrect fieldsErrFmtCount {n1}/3");
if (qualityAnalysis.fieldDatatypeDist.Count != qualityAnalysis.fields.Count) errs.Add($"incorrect fieldDatatypeDist {qualityAnalysis.fieldDatatypeDist.Count}/{qualityAnalysis.fields.Count}");
if (qualityAnalysis.fieldDatatypeDist[4]["int"]!=998) errs.Add($"incorrect fieldDatatypeDist[4][int] {qualityAnalysis.fieldDatatypeDist[4]["int"]}/998");
if (qualityAnalysis.fieldDatatypeDist[4]["empty"] != 5) errs.Add($"incorrect fieldDatatypeDist[4][empty] {qualityAnalysis.fieldDatatypeDist[4]["empty"]}/5");
if (qualityAnalysis.fieldUniqVals.Count != qualityAnalysis.fields.Count) errs.Add($"incorrect fieldUniqVals {qualityAnalysis.fieldUniqVals.Count}/{qualityAnalysis.fields.Count}");
if (qualityAnalysis.fieldUniqVals[1].Count == 0) errs.Add($"incorrect #fieldUniqVals[1]=0");
n1 = -1;
for (int i = 0; i < qualityAnalysis.fieldUniqVals[1].Count; i++) {
  if (qualityAnalysis.fieldUniqVals[1][i].uv == "96") {
    n1 = i; break;
  }
}
if (n1 < 0) errs.Add($"fieldUniqVals[1] missing key=96");
else if (qualityAnalysis.fieldUniqVals[1][n1].count != 18) errs.Add($"key=96 value wrong in fieldUniqVals[1][{n1}] {qualityAnalysis.fieldUniqVals[1][n1].count}/18");
if (qualityAnalysis.specCharDist.Count != 4) errs.Add($"incorrect specCharDist {qualityAnalysis.specCharDist.Count}/4");
if (!qualityAnalysis.specCharDist.ContainsKey("unicode_8252")) errs.Add($"missing key=unicode_8252 in specCharDist");
if (qualityAnalysis.specCharDist["unicode_8252"]!=1) errs.Add($"incorrect key=unicode_8252 in specCharDist {qualityAnalysis.specCharDist["unicode_8252"]}/1");
if (qualityAnalysis.coValues.Count != 1) errs.Add($"incorrect #coValues {qualityAnalysis.coValues.Count}/1");
if (qualityAnalysis.coValueUniqVals.Count != 1) errs.Add($"incorrect #coValueUniqVals {qualityAnalysis.coValueUniqVals.Count}/1");
n1 = -1;
for (int i = 0; i < qualityAnalysis.coValueUniqVals[0].Count; i++) {
  if (qualityAnalysis.coValueUniqVals[0][i].uv == "nc_north carolina") {
    n1 = i; break;
  }
}
if (n1 < 0) errs.Add($"coValueUniqVals[0] missing key=nc_north carolina");
else if (qualityAnalysis.coValueUniqVals[0][n1].count != 18) errs.Add($"coValueUniqVals[0][{n1}] for key=nc_north carolina wrong {qualityAnalysis.coValueUniqVals[0][n1].count}/18");
if (qualityAnalysis.fieldQuality.Count != qualityAnalysis.fields.Count) errs.Add($"incorrect fieldQuality {qualityAnalysis.fieldQuality.Count}/{qualityAnalysis.fields.Count}");
else if (qualityAnalysis.fieldQuality[0] != "95.2") errs.Add($"incorrect fieldQuality[0] {qualityAnalysis.fieldQuality[0]}/95.2");
else if (qualityAnalysis.fieldQuality[4] != "98.7") errs.Add($"incorrect fieldQuality[4] {qualityAnalysis.fieldQuality[4]}/98.7");
else if (qualityAnalysis.fieldQuality[5] != "97.8") errs.Add($"incorrect fieldQuality[6] {qualityAnalysis.fieldQuality[5]}/97.8");
if (errs.Count > 0) {
  Console.WriteLine("Analyze has errors  ---> FAIL");
  for (int i = 0; i < errs.Count; i++) {
    Console.WriteLine($"Error {i}:{errs[i]}");
  }
}
else {
  Console.WriteLine("Analyze 0 errors  ---> OK");
}

This shows the following output:

TEST ANALYZE QUALITY: IRSMigration_WithErrors_Hdr.csv_20240806T132858
Verity Analysis report at: D:\CodeDevelopment\VS\TestVerityDotNet\test\IRSMigration_WithErrors_Hdr_report.dat
Analyze Quality using Fields 0 errors  ---> OK

Review Results#

This section lists some of the report results.

Console.WriteLine("Sample Results:");
Console.WriteLine($"Number records= {qualityAnalysis.numRecs}");
Console.WriteLine($"Number records errors= {qualityAnalysis.errStats["numrecserr"]}");
Console.WriteLine($"Number records datatype errors= {qualityAnalysis.errStats["numrecserrdatatype"]}");
Console.WriteLine($"Number records format errors= {qualityAnalysis.errStats["numrecserrfmt"]}");
Console.WriteLine($"Number parsing errors Small1= {qualityAnalysis.recParseErrs["small1"]}");
Console.WriteLine($"Number parsing errors Small2= {qualityAnalysis.recParseErrs["small2"]}");
Console.WriteLine($"Number parsing errors Big= {qualityAnalysis.recParseErrs["big"]}");
for (int i = 0; i < qualityAnalysis.fields.Count; i++) {
  Console.WriteLine($"Field Quality {qualityAnalysis.fields[i].title}={qualityAnalysis.fieldQuality[i]} ");
}
Console.WriteLine("UNIQUE VALUES: Top 5 Per Field");
for (int i = 0; i < qualityAnalysis.fields.Count; i++) {
  Console.WriteLine($"Field {qualityAnalysis.fields[i].title}");
  for (int j=0; j<5; j++) {
    if (j >= qualityAnalysis.fieldUniqVals[i].Count) break;
    Console.WriteLine($"UV: {qualityAnalysis.fieldUniqVals[i][j].uv} has {qualityAnalysis.fieldUniqVals[i][j].count} instances");
  }
}
Console.WriteLine("UNIQUE VALUES: Bottom 5 Per Field");
for (int i = 0; i < qualityAnalysis.fields.Count; i++) {
  Console.WriteLine($"Field {qualityAnalysis.fields[i].title}");
  for (int j = 0; j < 5; j++) {
    n1 = qualityAnalysis.fieldUniqVals[i].Count - 1 - j;
    if (n1 < 0) break;
    Console.WriteLine($"UV: {qualityAnalysis.fieldUniqVals[i][n1].uv} has {qualityAnalysis.fieldUniqVals[i][n1].count} instances");
  }
}
Console.WriteLine("SPECIAL CHARACTERS");
foreach (KeyValuePair<string, long> kv in qualityAnalysis.specCharDist) {
  Console.WriteLine($"SpecChar {kv.Key} has {kv.Value} instances");
}
Console.WriteLine($"CoValues (20 values max): {qualityAnalysis.coValues[0].title}");
n1 = 0;
foreach ((string uv, long count) in qualityAnalysis.coValueUniqVals[0]) {
  Console.WriteLine($"{uv}: {count} instances");
  n1++;
  if (n1 >= 20) break;
}

With output:

Sample Results:
Number records= 1003
Number records errors= 19
Number records datatype errors= 14
Number records format errors= 9
Number parsing errors Small1= 0
Number parsing errors Small2= 5
Number parsing errors Big= 0
Field Quality y2_statefips=95.2
Field Quality y1_statefips=95.2
Field Quality y1_state=90.7
Field Quality y1_state_name=100
Field Quality n1=98.7
Field Quality n2=97.8
Field Quality AGI=89.1
UNIQUE VALUES: Top 5 Per Field
Field y2_statefips
UV: 09 has 56 instances
UV: 19 has 56 instances
UV: 18 has 56 instances
UV: 17 has 56 instances
UV: 16 has 56 instances
Field y1_statefips
UV: 97 has 35 instances
UV: 96 has 18 instances
UV: 05 has 18 instances
UV: 40 has 18 instances
UV: 04 has 18 instances
Field y1_state
UV: al has 22 instances
UV: az has 22 instances
UV: hi has 22 instances
UV: ar has 22 instances
UV: in has 22 instances
Field y1_state_name
UV: missouri has 18 instances
UV: maryland has 18 instances
UV: washington has 18 instances
UV: pennsylvania has 18 instances
UV: wisconsin has 18 instances
Field n1
UV: -1 has 13 instances
UV: 97 has 8 instances
UV: 59 has 6 instances
UV: 27 has 5 instances
UV: 30 has 5 instances
Field n2
UV: -1 has 13 instances
UV: 57 has 5 instances
UV: -empty- has 5 instances
UV: 33 has 5 instances
UV: 172 has 4 instances
Field AGI
UV: -1 has 13 instances
UV: -empty- has 5 instances
UV: 6258 has 2 instances
UV: 111795 has 2 instances
UV: 5351 has 2 instances
UNIQUE VALUES: Bottom 5 Per Field
Field y2_statefips
UV: state has 1 instances
UV: non- has 1 instances
UV: migrants has 1 instances
UV: 1 has 1 instances
UV: 21 has 49 instances
Field y1_statefips
UV: 1598458 has 1 instances
UV: 46630 has 1 instances
UV: -empty- has 1 instances
UV: 50 has 17 instances
UV: 11 has 17 instances
Field y1_state
UV: 95832 has 1 instances
UV: -empty- has 1 instances
UV: 3579600 has 1 instances
UV: vt has 17 instances
UV: nd has 17 instances
Field y1_state_name
UV: ky non-migrants has 1 instances
UV: co non-migrants has 1 instances
UV: ca total migration-us and foreign has 1 instances
UV: ca total migration-us has 1 instances
UV: ca total migration-foreign has 1 instances
Field n1
UV: 64 has 1 instances
UV: 995 has 1 instances
UV: 624 has 1 instances
UV: 628 has 1 instances
UV: 719 has 1 instances
Field n2
UV: 97 has 1 instances
UV: 1541 has 1 instances
UV: 1156 has 1 instances
UV: 1115 has 1 instances
UV: 1141 has 1 instances
Field AGI
UV: 2980 has 1 instances
UV: 29990 has 1 instances
UV: 144141 has 1 instances
UV: 196950 has 1 instances
UV: 1016401 has 1 instances
SPECIAL CHARACTERS
SpecChar ascii_234 has 1 instances
SpecChar unicode_8252 has 1 instances
SpecChar ascii_167 has 1 instances
SpecChar unicode_9658 has 1 instances
CoValues (20 values max): y1_state,y1_state_name
mo_missouri: 18 instances
md_maryland: 18 instances
wa_washington: 18 instances
pa_pennsylvania: 18 instances
wi_wisconsin: 18 instances
sd_south dakota: 18 instances
me_maine: 18 instances
mi_michigan: 18 instances
sc_south carolina: 18 instances
oh_ohio: 18 instances
nv_nevada: 18 instances
ny_new york: 18 instances
va_virginia: 18 instances
fr_foreign: 18 instances
nj_new jersey: 18 instances
la_louisiana: 18 instances
wy_wyoming: 18 instances
ms_mississippi: 18 instances
tn_tennessee: 18 instances
tx_texas: 18 instances

Multi_Threading #

Multi-threaded functions are built-in for AnalyzeQuality. To use it, you need to supply a license and a licenseId in the ‘settings’ dictionary. You obtain the license from Technik Interlytics with a suitable paid subscription plan. An evaluation license can be used with limited capability by supplying “VerityTrial” as the license (no licenseId is needed). We can use the same example as above but with modified settings to enable multi-threading.

With a full license, you can set several parameters to control the number and assignment of threads. Note that the actual number of threads and the number of records assigned to each thread in each cycle is determined at run-time. These settings, and the limits with a Trial license, are the starting values for the run-time calculation.

maxThreads- maximum number of threads to use

nRecsPerThreadMin- minimum number of records to assign to each thread in each cycle

nRecsPerThreadMax- maximum number of records to assign to each thread in each cycle

useThreads- boolean whether to use multi-threading. Must be ‘true’ to more than 1 thread to be used

The Trial license imposes limits:

maxThreads- 3

nRecsPerThreadMax- 50

Console.WriteLine("\n\nTest 2: Multi-thread with TRIAL license");
//add parameters
parameters["license"] = "VerityTrial";
parameters["licenseid"] = "";
parameters["maxThreads"] = "5"; //will be ignored due to trial license
parameters["nRecsPerThreadMin"] = "500"; //will be ignored due to trial license
parameters["nRecsPerThreadMax"] = "10000"; //will be ignored due to trial license
parameters["useThreads"] = "true"; //multi-threading is used

errs.Clear();
//perform Verity Analysis. We do not use coValues in this example so send an empty container
qualityAnalysis = AnalyzeQuality.Inspect(srcFields, new List<Dictionary<string, string>>(), parameters, recs);
if (qualityAnalysis.status.StartsWith("notok:")) throw new Exception($"error doing AnalyzeQuality: {qualityAnalysis.status[6..]}");
else if (!qualityAnalysis.status.StartsWith("license trial:")) throw new Exception($"error doing AnalyzeQuality report status does not start with license trial: {qualityAnalysis.status}");
else Console.WriteLine($"AnalyzeQuality with threads trial license status: {qualityAnalysis.status}");

Output:

Test 2: Multi-thread with TRIAL license
AnalyzeQuality with threads trial license status: license trial:#threads=3, recsPerT=50, #recsIn=1003
Analyze with threads TRIAL license 0 errors  ---> OK

Next #

See Normalize & Enrich Data Records for examples of how to use the analysis results to remediate, normalize, and enrich the data.

Analyze Data Records#

Goal#

Objectives#

Practice Continual Improvement#

Example#
